BGP Route Reflecting






Before we start the lab we need to know why using route reflector, so for our topology

R1 R2 R3 R4 are in AS 100

iBGP peering

R1-R2

R1-R3

R1-R4

EBGP

R1-R5

R1-R6

each router advertises the following subnets in the  BGP

R1 1.1.0.0/24  10.1.15.0/24 10.1.16.0/24

R2  2.2.0.0/24

R3 3.3.0.0/24

R4 4.4.0.0/24

R5 5.5.0.0/24

R6 6.6.0.0/24

Now lets check the BGP on various routers

on R1


As we can see R1 BGP table looks good, we have all the routes from all neighbors


R5 also looks good, all routes are received into BGP

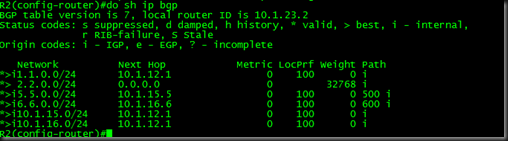

now let’s check R2


so on R2 we haven’t received the 2 loopbacks of R3 and R4

what about R3


Also on R3 the loopbacks of R2 and R4 are missing

Tis normal behavior for BGP, routes received from iBGP peers are only advertised to EBGP peers but not to other iBGP  to prevent loops

so in order for us to overcome this we basically have 3 solutions:

1- configure full mesh between all iBGP peers

2- use route reflectors

3- use confederation

The full mesh topology maybe feasible for small numbers of iBGP peers but using (N x (N – 1))/2 rule this means that if we have 6 routers we need 15 iBGP sessions which is not very scalable

in our case we will use route reflectors

so we will configure R2 and R3 as Route-Reflector clients and we will not configure R4 as route reflector client for now

The way we do this is under R1 BGP configurations

router  bgp 100

neighbor 10.1.12.2 route-reflector-client

neighbor 10.1.13.3 route-reflector-client

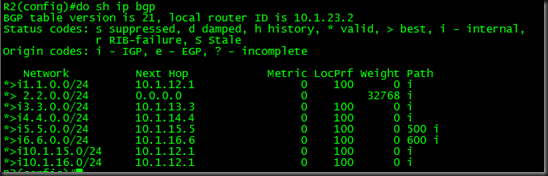

Now let’s see the BGP table on R2


so we can see that now we are receiving the routes from R3 and R4

one thing to notice here that route-reflectors don’t change th next hop attribute as we can see

Also if we check R4 BGP table


we see that R2 and R3 are now received in R4 although R4 is not configured as route-reflector client

These are the 3 rules for route-reflecting

1-Routes learned from EBGP peers will be advertised to other EBGP peers, RR clients and non-clients

2- Routes learned from RR clients will be advertised to EBGP  peers, other RR clients and non clients

3- Routes learned from non clients will be advertised to EBGP peers, RR clients but not to other non clients

That’s why R4 loopback was advertised to R1 and R2 and R1 and R2 loopback were advertised no R4

The term luster is basically RR and it’s clients

so when we check the BGP route 4.4.0.0 we will see the cluster list :10.1.16.1

this is R1 router-id

R3(config-router)#do sh ip bgp 4.4.0.0
BGP routing table entry for 4.4.0.0/24, version 16
Paths: (1 available, best #1, table Default-IP-Routing-Table)
  Not advertised to any peer
  Local
    10.1.14.4 (metric 30720) from 10.1.13.1 (10.1.16.1)
      Origin IGP, metric 0, localpref 100, valid, internal, best
      Originator: 10.1.34.4, Cluster list: 10.1.16.1

R1(config-router)#do sh ip bgp | in ID
BGP table version is 13, local router ID is 10.1.16.1

Cluster lists are used to prevent loops when we have multiple clusters in the BGP domains as advertisements will be discarded if they have our own cluster-list
